Want to get the most from your boat, but without breaking the bank. Well these Lenco Trim Tab Kits will do the job. They come complete with all the parts required to get you on water as soon as you can fit it.
Lenco's original Trim Tab design and still the most popular series.
Ideal for most common style boats from center console fishing boats to cuddy cabin cruisers.
Boat lengths 14' (4.3m) to 69' (21m).
Blades are constructed of 12 gauge (2.7mm) laser cut 304 stainless steel with a 5/8" (1.6cm) flared trailing edge & 1/8" (3.2mm) diameter hinge pin. Upper and lower high impact corrosion proof mounting brackets with mechanical cable gland seal.
Unsure what size required, please contact us by email or phone. We don't bite, honest, and advice is free
Specification

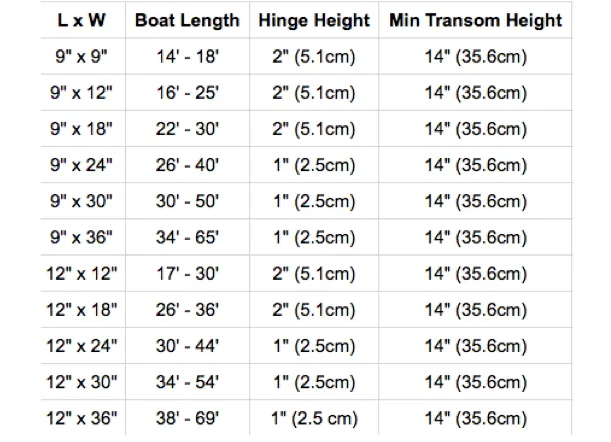

- See attached image for Boat Size & Suitability
Whats in the Box
- 2 x 12-gauge stainless steel finish blades
- 2 x Actuators with 6' ( 1.8m ) leads and Deutsch connectors
- 2 x Actuator extension wiring harness - 20' (6.1m) length
- 2 x Upper mounting brackets with gland seal
- Stainless steel mounting hardware
- Lenco owner's / installation manual
Models
- Lenco Standard Mount Trim Tab Kits 9" x 9" Boat 14' - 18' ( 4.3-5.5m)
- Lenco Standard Mount Trim Tab Kits 9" x 12" Boat 16' - 25' ( 4.8-7.6m)
- Lenco Standard Mount Trim Tab Kits 9" x 18" Boat 22' - 30' ( 6.8-9.1m)
- Lenco Standard Mount Trim Tab Kits 9" x 24" Boat 26' - 40' ( 7.9-12.2m)
- Lenco Standard Mount Trim Tab Kits 12" x 12" Boat 17' - 30' ( 5.2-9.1m)
- Lenco Standard Mount Trim Tab Kits 12" x 18" Boat 26' - 36' ( 7.9-10.9m)
- Lenco Standard Mount Trim Tab Kits 12" x 24" Boat 30' - 44' ( 9.1-13.4m)
- Lenco Standard Mount Trim Tab Kits 12" x 30" Boat 34' - 54' ( 10.3-26.8m)
For Lenco Switches please view Website. If in doubt please call or email.
