Pickup Truck Slimline II Load Bed Rack Kit / 1425 (W) x 1964 (L) - by Front Runner Outfitters
If you are the owner of a pickup truck and you are into the outdoors, roadtrips and overland adventures, then you must be in the need of an add or build. And there is no better option to go than the Slimline II Load Bed Rack Kit.
Made by Front Runner, this is one of the best products available in the market. Completely sophisticated, high quality and with excellent functionality, it has over 660 lbs static load capacity.
It will carry even your most demanding cargo, from surfboards, to gear, canoes, fishing rods, cargo carriers, kayaks, boards, bikes, accessories, to even , you name it. This load bed rack is tough, durable and completely reliable.
Hence, if you want to take your 1425 (W) x 1964 (L) pickup truck to the most awesome adventures, then the Slimline II Load Bed Rack Kit is a choice you must definitely consider.

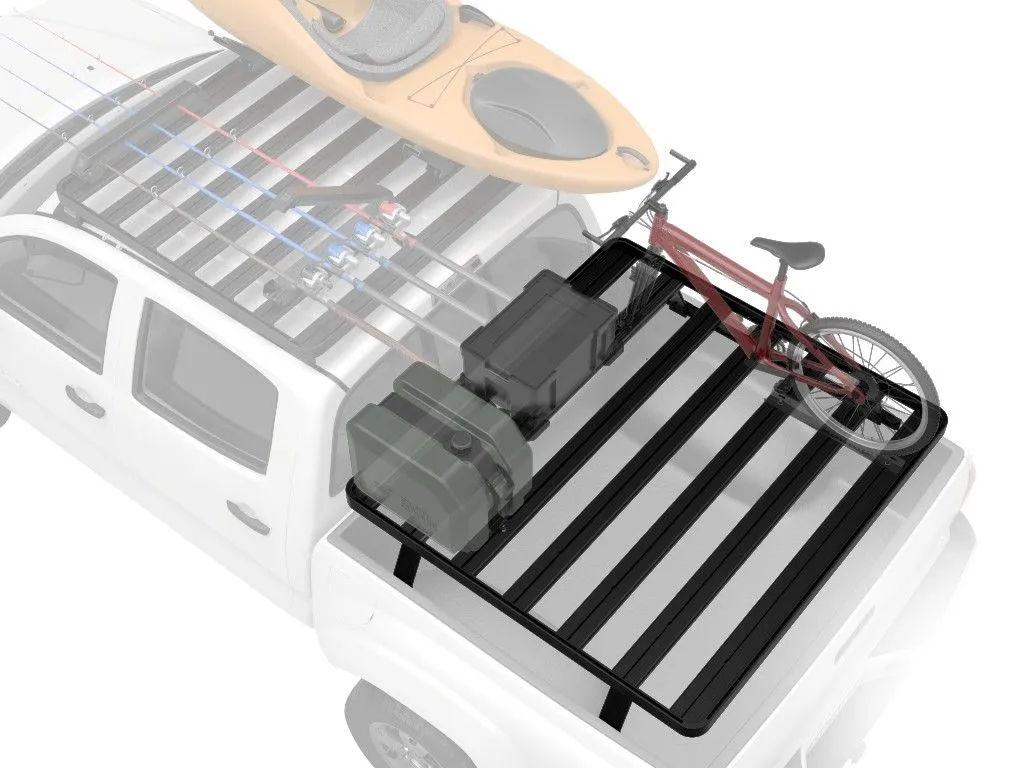

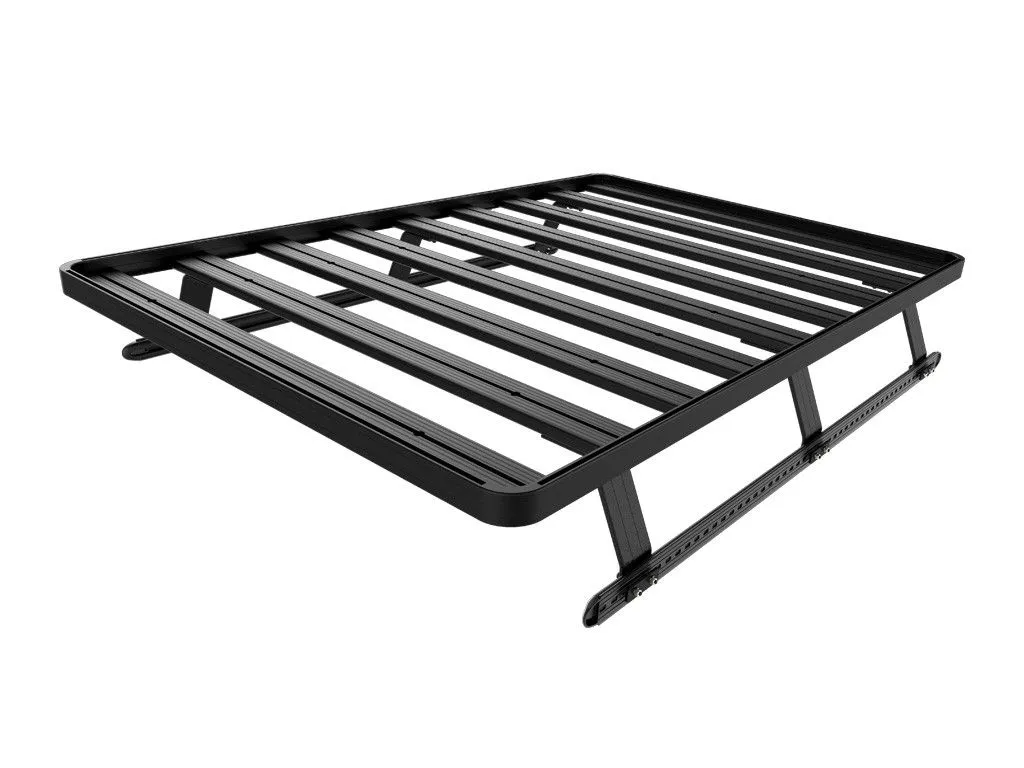

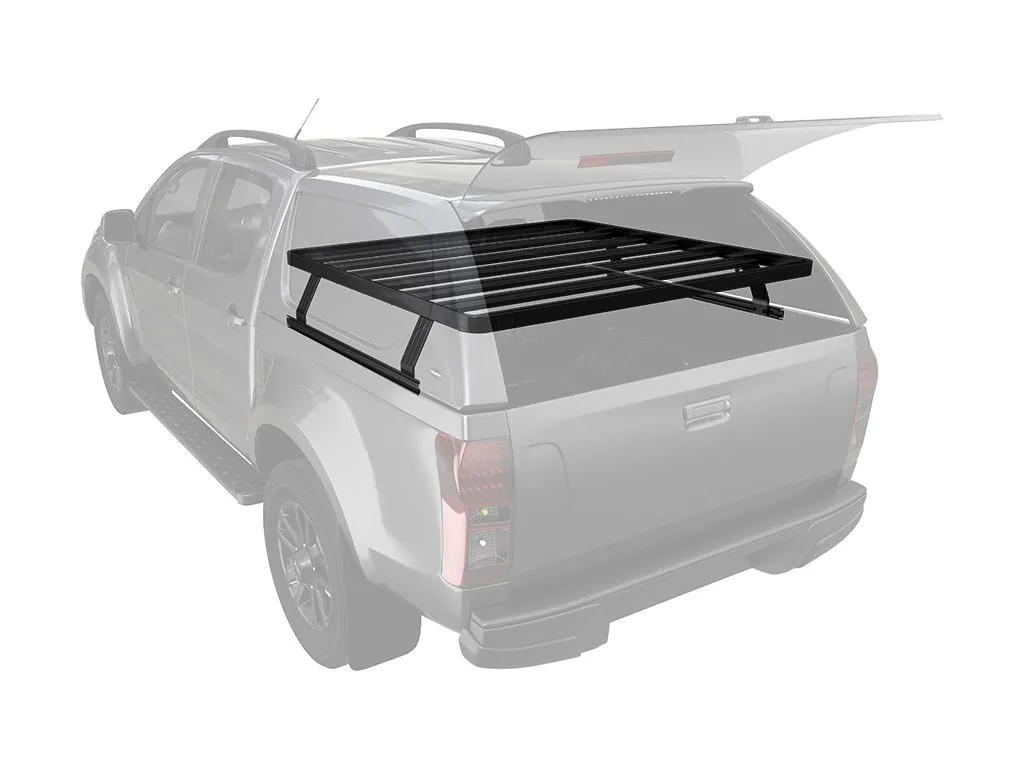

Also, this kit creates a full size rack that sits above your pickup truck bed. This Slimline II cargo carrying rack kit contains the Slimline II tray (1425mm/56.1" (W) x 1964mm/77.3" (L)), 2 Tracks, and 8 Pickup Truck Bed Universal Legs that fit into the Tracks.
This rack fits a load bed width of 1495mm - 1575mm (58-62") and length of 2033mm - 2438mm (80-96"). It may require drilling for installation. Plus, it comes with installation instructions, as well as the components needed to mount the Slimline II Tray to your vehicle so you can get going with your adventures!
All Front Runner Racks are backed by a Limited Lifetime Warranty*
We offer Free Shipping!
Consists of:
- 4 x LASS026 - Universal Load Bed Leg 188mm (Pair) - by Front Runner
- 1 x RRSTJ10 - Slimline II Tray - 1425mm(W) X 1964mm(L) - by Front Runner
- 1 x TRBU004 - Pick-Up Load Bed Tracks / 1600mm(L) - by Front Runner
Material used:
- Black epoxy powder-coated T6 aluminium
- 3CR12 Stainless Steel
Features:
- Approximate Installed Weight 36kg (78lbs)

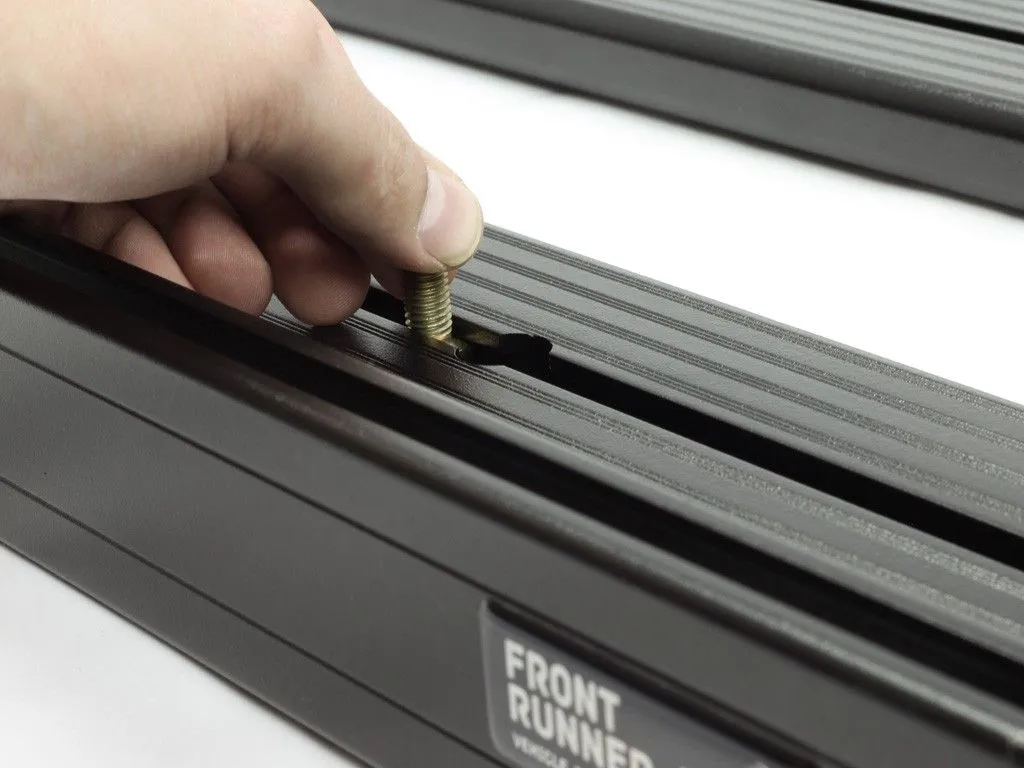

- The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts
Shipping Dimensions:
- Width 450mm (18")
- Length 1615mm (64")
- Height 140mm (6")
- Approximate Installed Weight 36kg (78lbs)
- Shipping weight 41.3kg (90.9lbs)
How To Install:
- Click for Installation Instructions for KRLB021T
- Click for Installation Instructions for LASS026
- Click for Installation Instructions for RRSTA10
- Click for Installation Instructions for TRBU004
More Info:
- To determine the approximate height from your vehicle's roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/ 2") to the height of the Foot, Grab-on Foot or Strap-On Foot listed above.
- If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/ 2") to the height of the Legs to determine the height of the rack from your vehicle's rain gutters.
- If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/ 2") to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicles roof.
