Product Description
Boat Lift Distributors 6500 LB Classic Cradle Lift | 1HP
Included Options:
- Direct Drive for enhanced efficiency
- Cradle guides for smooth operation
- Remote control for convenience
- Pontoon chocks
DESCRIPTION

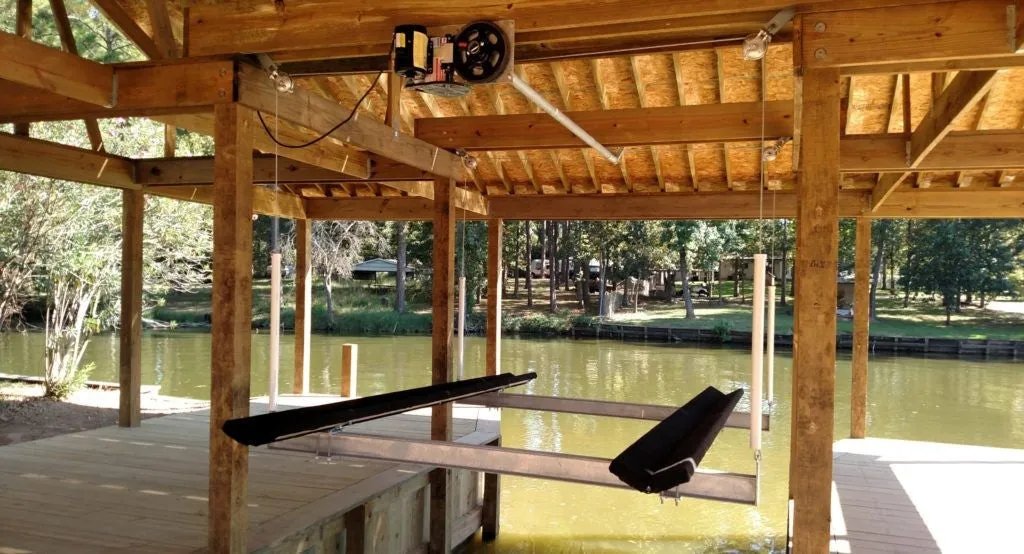

Upgrade your boathouse with the robust and powerful 6500 LB Classic Cradle Lift from Boat Lift Distributors. Engineered as the "hoss" of boat lifts, this unit is ideal for lifting larger crafts up to 6500 lbs. Featuring a 1 hp heavy-duty motor and belt-driven system, it ensures reliable performance and durability. Whether you own a boathouse or are considering building one, this lift kit offers a straightforward installation process and minimal maintenance requirements.
Boat Lift Distributors' 6500 LB Classic Cradle Lift is designed and tested for safe, dependable operation, making it the ideal choice for storing and protecting larger boats in your boathouse. Enhance your boathouse's functionality with a reliable lifting solution that ensures ease of use and durability.
Key Features
- 1/4″ Galvanized HD gear plate with ductile iron bull gear and HD bronze worm gear for extreme tensile strength
- 1 hp HD TENV sealed motor with electrical wire, switch & GFCI for safe operation
- Four 4″ galvanized grease-able yarding block pulleys with mounts
- Four galvanized block pulleys for the cradle
- 150 ft of 1/4″ stainless steel 7 x 19 aircraft cable for superior strength and durability
- Eight 1/4″ stainless steel cable clamps and four thimbles for secure cable management

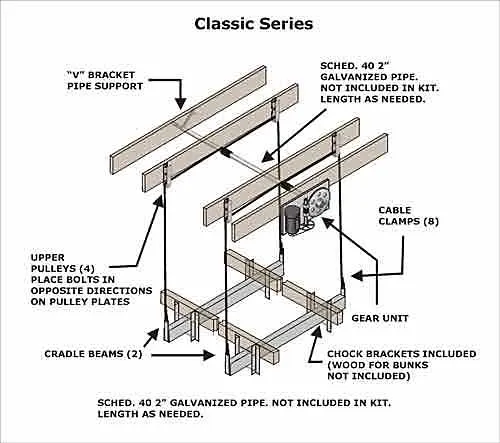

- "V" pipe support included for added stability
- Two galvanized 9′ cradle beams, 9′ x 5″ x 3″, with all necessary attaching hardware including a set of eight chock brackets
- Comprehensive set of attaching hardware provided
Detailed Specifications
|
Specifications |
Details |
|---|---|
| Lift Capacity | 6500 lbs |
| Motor Power | 1 hp HD TENV sealed motor |
| Drive Type | Direct Drive |
| Cradle Beams | 9' x 5" x 3" galvanized beams |
| Cable | 1/4″ stainless steel, 7 x 19 aircraft cable (150 ft) |
| Pulley System | Four 4" galvanized grease-able yarding block pulleys and four galvanized block pulleys for the cradle |
| Cable Clamps | Eight 1/4″ stainless steel cable clamps, four thimbles |
| Gear Plate | 1/4" galvanized HD gear plate, ductile iron bull gear, HD bronze worm gear |
| Pipe Requirement | 2" ID/ 2-3/8" OD, Schedule 40 galvanized pipe (not included) |
| Configuration | Single line |
| Included Hardware | Complete set including "V" pipe support, chock brackets, and more |
